| MODEL | MEGA-6KW | MEGA-8KW | MEGA-10KW | MEGA-12KW | |
| PHASE | 1-phasein/1-phaseout | ||||
| MAXIMUM PV INPUT POWER | 9000W | 13500W | 16200W | 16200W | |
| RATED OUTPUT POWER | 6000W | 8000W | 10000W | 12000W | |
| MAXIMUM CHARGING POWER | 6000W | 8000W | 10000W | 12000W | |
| GRID-TIED OPERATION | |||||
| PV INPUT(DC) | |||||
| Maximum DC Voltage | 520Vdc | ||||
| Start-up Voltage/Initial Feeding Voltage | 90Vdc/120Vdc | ||||
| MPPT Voltage Range | 50-450Vdc | ||||
| Number of MPPT Trackers /Maximum Input Current | 2/18A | 2/18A+36A | 2/18A+36A | 2/18A+36A | |
| GRID OUTPUT(AC) | |||||
| Nominal Output Voltage | 220/230/240VAC | ||||
| Output Voltage Range | 184-264.5VACor195.5-253VACor184-264.4VAC(Selectable) | ||||
| Nominal Output Current | 26.1A | 34.8A | 43.5A | 52.2A | |
| Power Factor | >0.99 | ||||
| EFFICIENCY | |||||
| Maximum Conversion Efficiency(DC/AC） | 97% | ||||
| OFF-GRID OPERATION | |||||
| AC INPUT | |||||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||||
| Acceptable Input Voltage Range | 90-280VAC | ||||
| Frequency Range | 50Hz/60Hz(Autosensing) | ||||
| Maximum AC Input Current | 40A | 50A | 60A | 70A | |
| PV INPUT(DC) | |||||
| Maximum DC Voltage | 520Vdc | ||||
| MPPT Voltage Range | 50Vdc-450Vdc | ||||
| Number of MPPT Trackers/Maximum Input Current | 2/18A | 2/18A+36A | 2/18A+36A | 2/18A+36A | |
| BATTERY MODE OUTPUT (AC) | |||||
| Nominal Output Voltage | 220/230/240VAC | ||||
| Output Waveform | Pure sine wave | ||||
| Efficiency (DC to AC) | 93% | ||||
| HYBRID OPERATION | |||||
| PV INPUT (DC) | |||||
| Maximum DC Voltage | 520Vdc | ||||
| Start-up Voltage/Initial Feeding Voltage | 90Vdc/120Vdc | ||||
| MPPT Voltage Range | 50Vdc-450Vdc | ||||
| Number of MPPT Trackers/Maximum Input Current | 2/18A | 2/18A+36A | 2/18A+36A | 2/18A+36A | |
| GRID OUTPUT (AC) | |||||
| Nominal Output Voltage | 220/230/240VAC | ||||
| Output Voltage Range | 184-264.5 VACor 195.5-253 VACor 184-264.4 VAC(Selectable) | ||||
| Nominal Output Current | 26.1A | 34.8A | 43.5A | 52.2A | |
| AC INPUT | |||||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||||
| Acceptable Input Voltage Range | 90-280VACor170-280VAC | ||||
| Maximum AC Input Current | 40A | 50A | 60A | 70A | |
| BATTERY MODE OUTPUT (AC) | |||||
| Nominal Output Voltage | 220/230/240VAC | ||||
| Efficiency(DC to AC) | 93% | ||||
| BATTERY&CHARGER | |||||
| Nominal DC Voltage | 48Vdc | ||||
| Maximum Solar Charging Current | 135A | 190A | 220A | 250A | |
| Maximum AC Charging Current | 135A | 190A | 220A | 250A | |
| Maximum Charging Current | 135A | 190A | 220A | 250A | |
| GENERAL | |||||
| PHYSICAL | |||||
| Dimension,DxWxH(mm) | 521x470x236 | 600x483x260 | |||
| NetWeight(kg) | 30 | 38 | 42 | 45 | |
| INTERFACE | |||||
| Parallel Function | Yes,6units | ||||

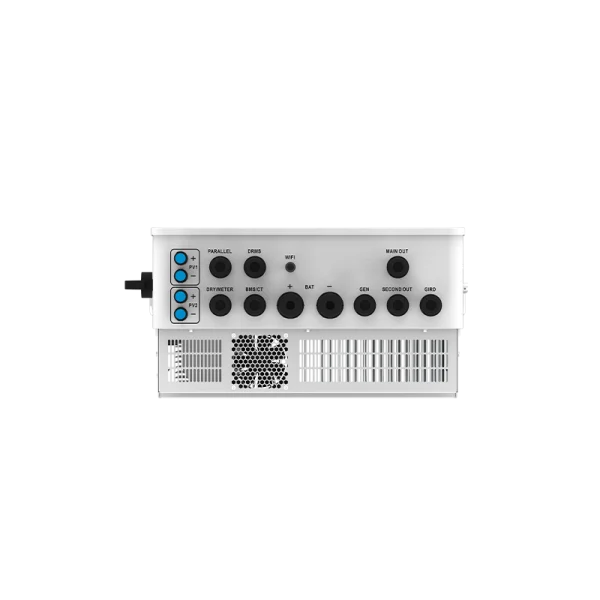

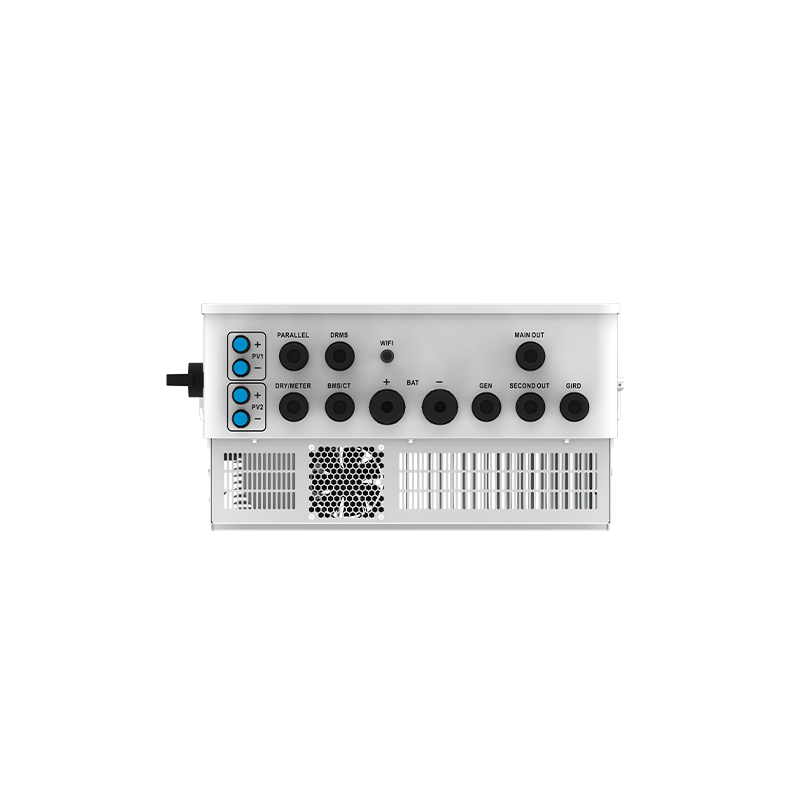

| Communication Port | RS232/RS485/CAN/WiFi/Drycontact | ||||
| ENVIRONMENT | |||||
| Humidity | 5%to95%Relative Humidity(Non-condensing) | ||||
| IPdegree | IP65 | ||||
| Operating Temperature | -10℃～50℃ | ||||
| Storage Temperature | -15℃～60℃ | ||||

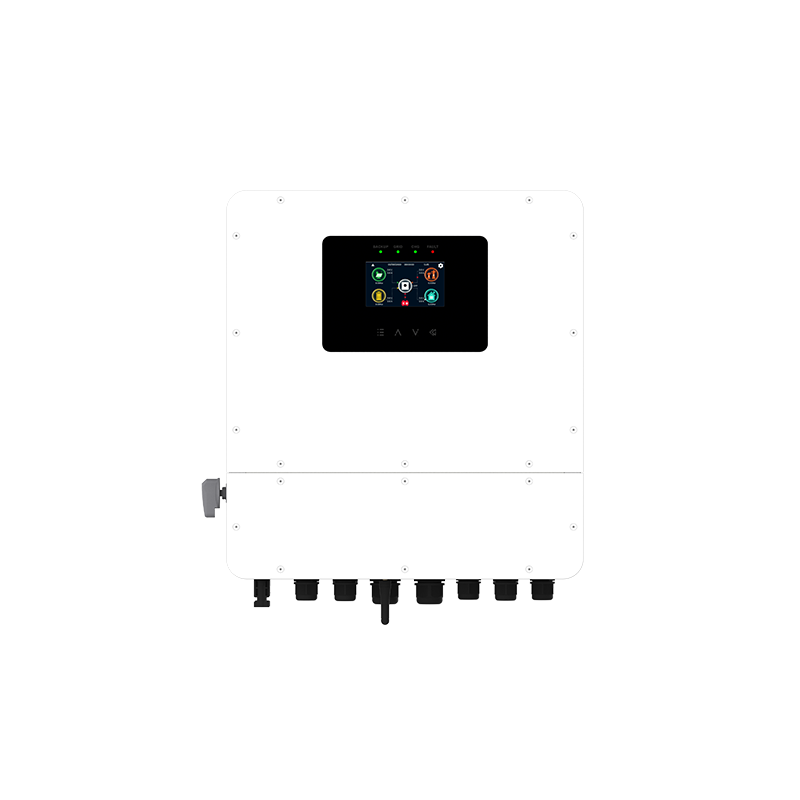

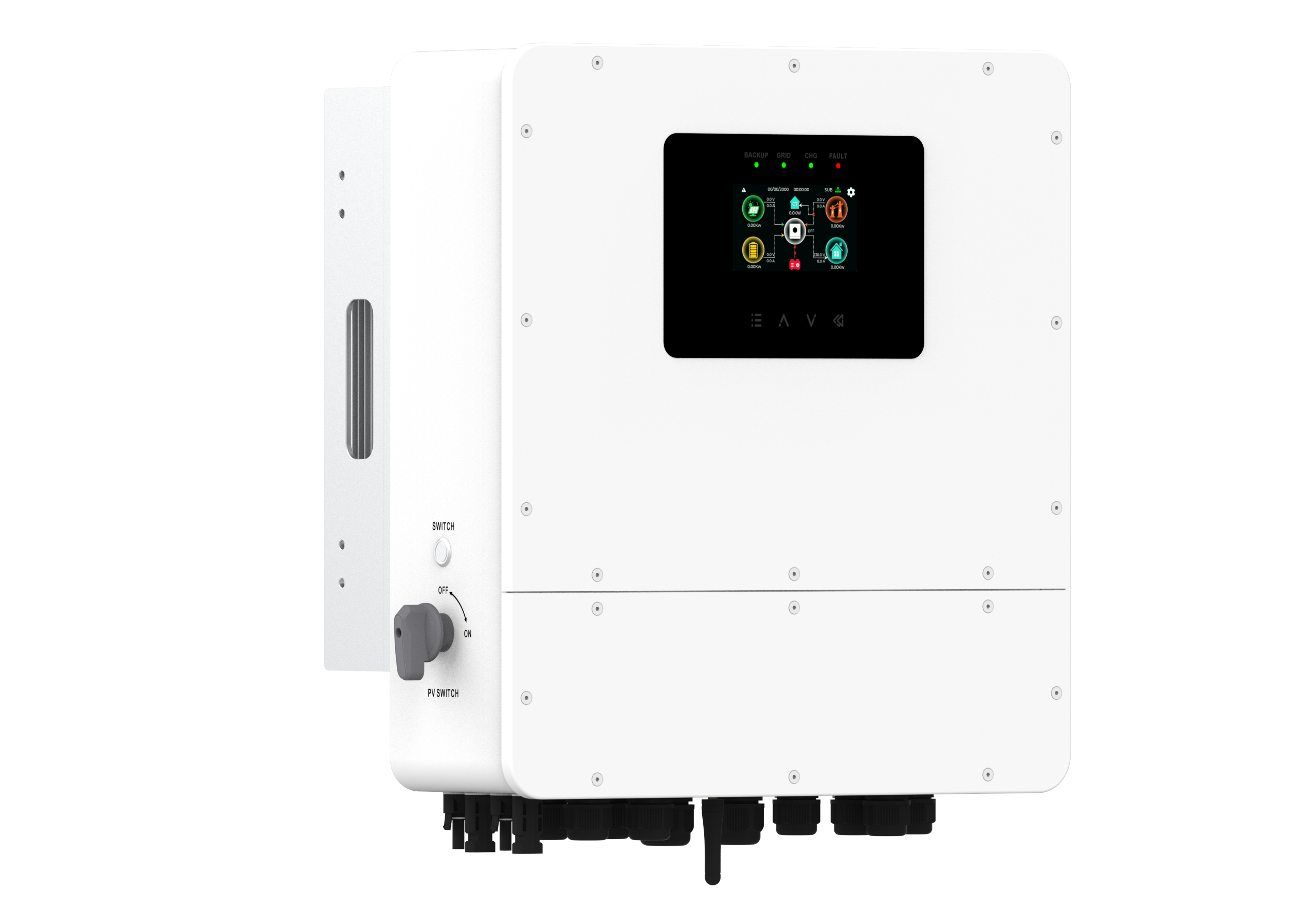

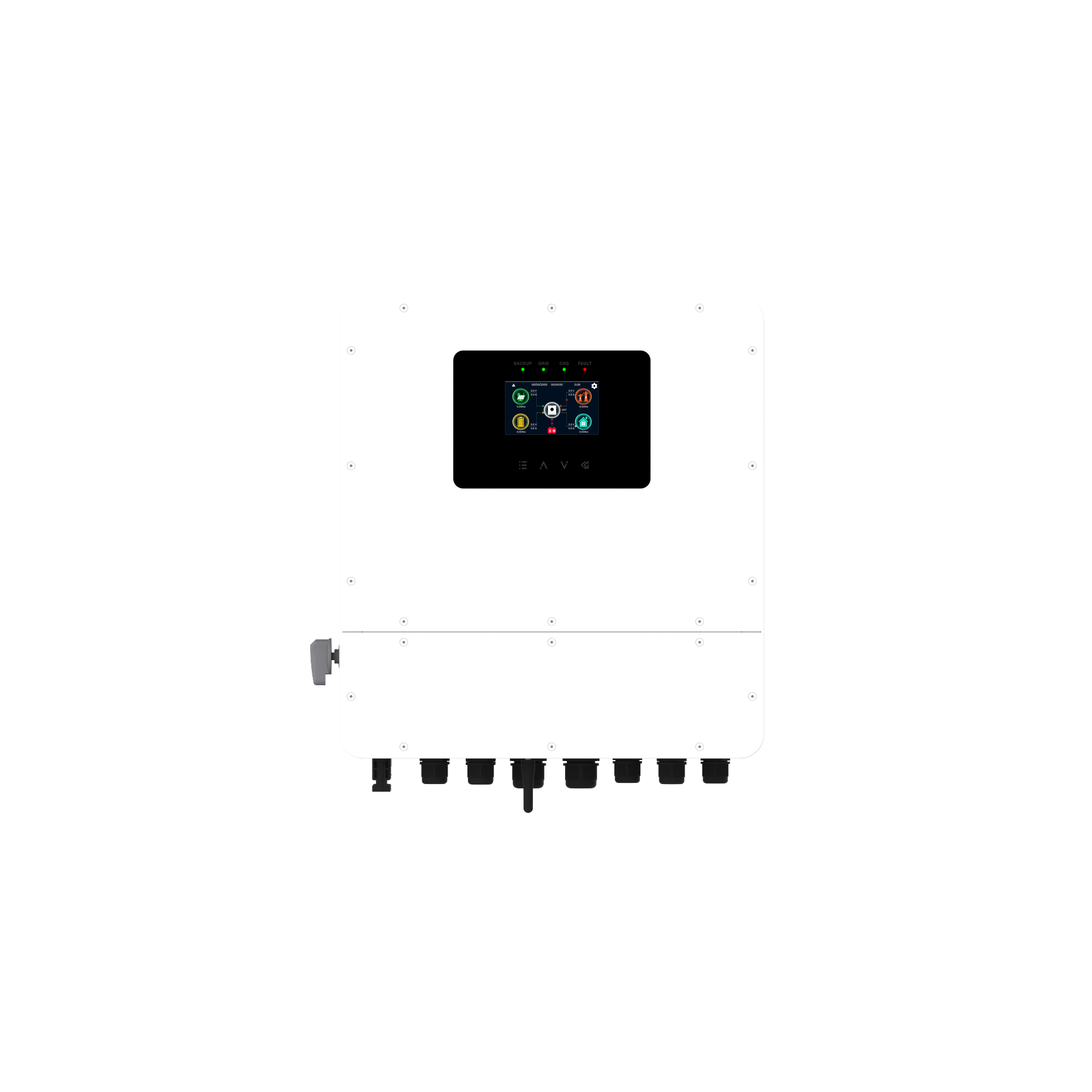

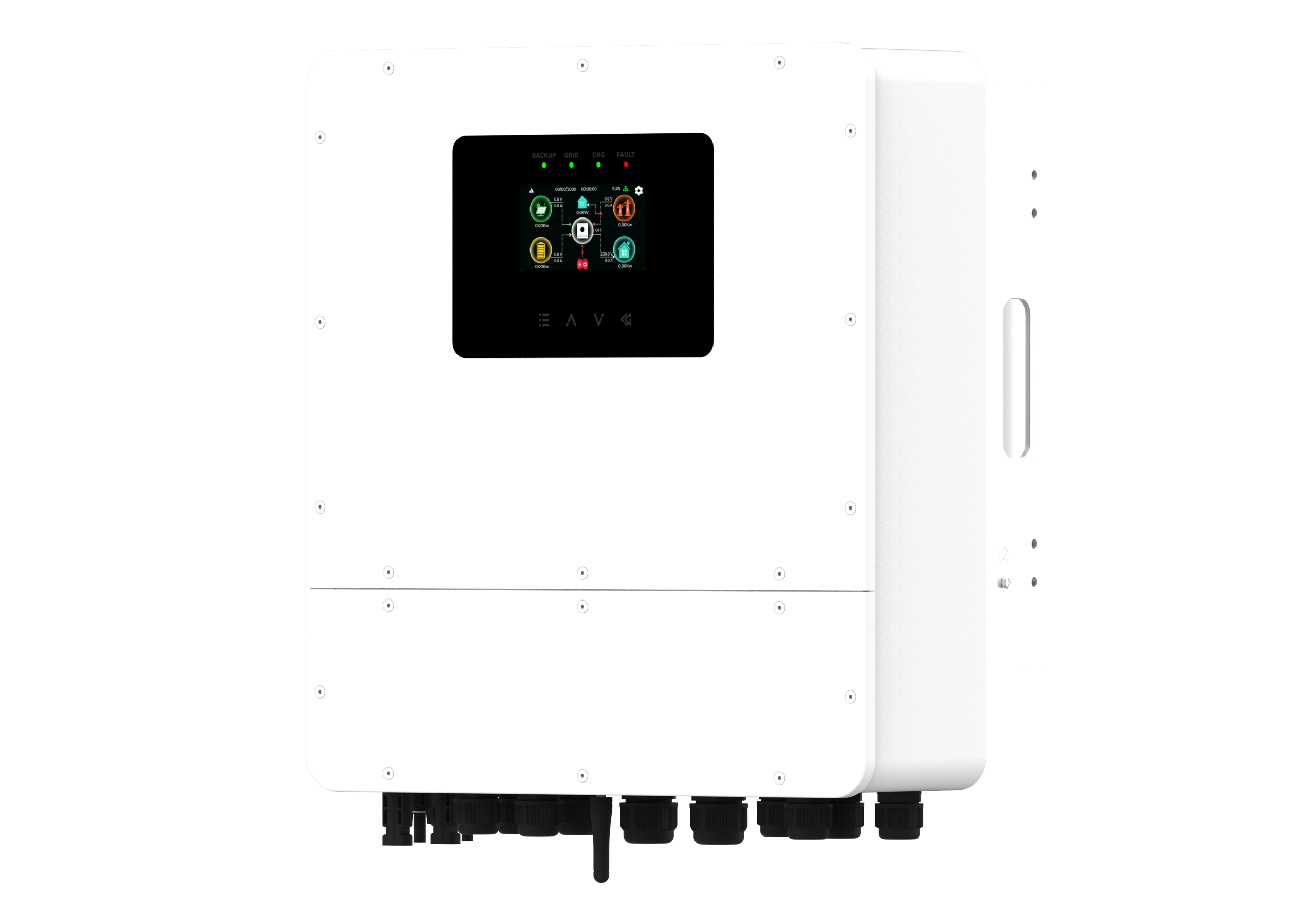

MEGA-6K
