| MODEL | MAGIC-10KW | MAGIC-12KW | MAGIC-14KW |
| PHASE | 3-phase in / 3-phase out | ||
| MAXIMUM PV INPUT POWER | 16200W | ||
| RATED OUTPUT POWER | 10000W | 12000W | 14000W |
| MAXIMUM CHARGING POWER | 10000W | 12000W | 14000W |
| GRID-TIED OPERATION | |||
| PV INPUT (DC) | |||
| Maximum DC Voltage | 1000Vdc | ||
| Start-up Voltage / Initial Feeding Voltage | 150Vdc / 200Vdc | ||
| MPPT Voltage Range | 200Vdc – 800Vdc | ||
| Number of MPPT Trackers / Maximum Input Current | 2 / 18A+36A | 2 / 18A+36A | 2 / 18A+36A |
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 230VAC (P-N) / 400VAC (P-P) | ||
| Output Voltage Range | 184-265VAC per phase | ||
| Nominal Output Current | 14.5A per phase | 17.4A per phase | 20.2A per phase |
| Power Factor | >0.99 | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency (DC/AC) | 98% | ||
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage / Auto Restart Voltage | 120-140VAC per phase / 180VAC per phase | ||
| Acceptable Input Voltage Range | 90-280VAC per phase | ||
| Frequency Range | 50Hz / 60Hz (Auto-sensing) | ||
| Maximum AC Input Current | 40A | 50A | 50A |
| PV INPUT (DC) | |||
| Maximum DC Voltage | 1000Vdc | ||
| MPPT Voltage Range | 200Vdc – 800Vdc | ||
| Number of MPPT Trackers / Maximum Input Current | 2 / 18A+36A | 2 / 18A+36A | 2 / 18A+36A |
| BATTERY MODE OUTPUT (AC) | |||
| Nominal Output Voltage | 230VAC (P-N) / 400VAC (P-P) | ||
| Output Waveform | Pure sine wave | ||
| Efficiency (DC to AC) | 94% | ||
| HYBRID OPERATION | |||
| PV INPUT (DC) | |||
| Maximum DC Voltage | 1000Vdc | ||
| Start-up Voltage / Initial Feeding Voltage | 150Vdc / 200Vdc | ||
| MPPT Voltage Range | 200Vdc – 800Vdc | ||
| Number of MPPT Trackers / Maximum Input Current | 2 / 18A+36A | 2 / 18A+36A | 2 / 18A+36A |
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 230VAC (P-N) / 400VAC (P-P) | ||
| Output Voltage Range | 184-265VAC per phase | ||
| Nominal Output Current | 14.5A per phase | 17.4A per phase | 20.2A per phase |
| AC INPUT | |||
| AC Start-up Voltage / Auto Restart Voltage | 120-140VAC per phase / 180VAC per phase | ||
| Acceptable Input Voltage Range | 90-280VAC per phase | ||
| Maximum AC Input Current | 40A | 50A | 50A |
| BATTERY MODE OUTPUT (AC) | |||
| Nominal Output Voltage | 230VAC (P-N) / 400VAC (P-P) | ||
| Efficiency (DC to AC) | 94% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48Vdc | ||
| Maximum Solar Charging Current | 220A | 250A | 250A |
| Maximum AC Charging Current | 220A | 250A | 250A |
| Maximum Charging Current | 220A | 250A | 250A |
| GENERAL | |||
| PHYSICAL | |||
| Dimension, D×W×H (mm) | 572×653×550 | ||
| Net Weight (kg) | 48 | 52 | 58 |
| INTERFACE | |||
| Parallel Function | Yes, 9 units | ||

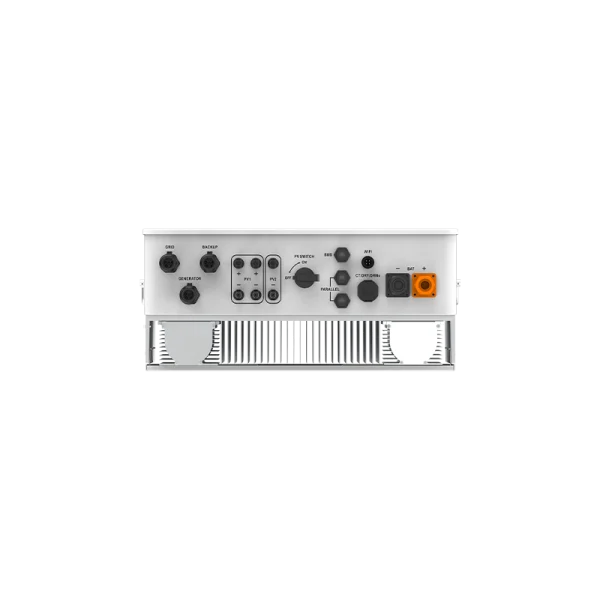

| Communication Port | RS232 / RS485 / CAN / Wi-Fi / Dry contact | ||
| ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| IP degree | IP65 | ||
| Operating Temperature | -25°C ~ 60°C (>45°C power derating) | ||
| Storage Temperature | -15°C ~ 60°C | ||

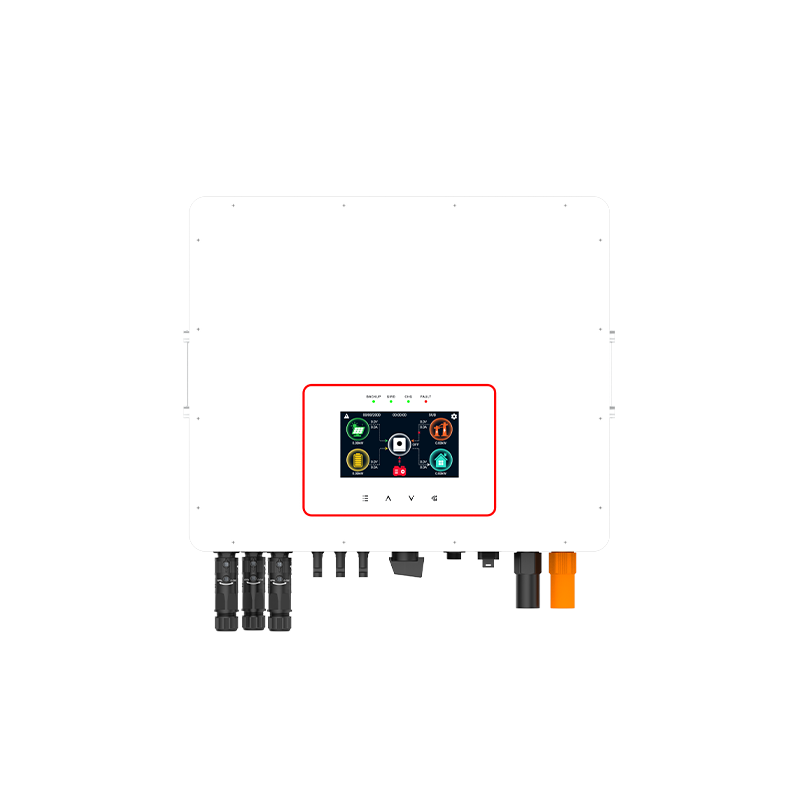

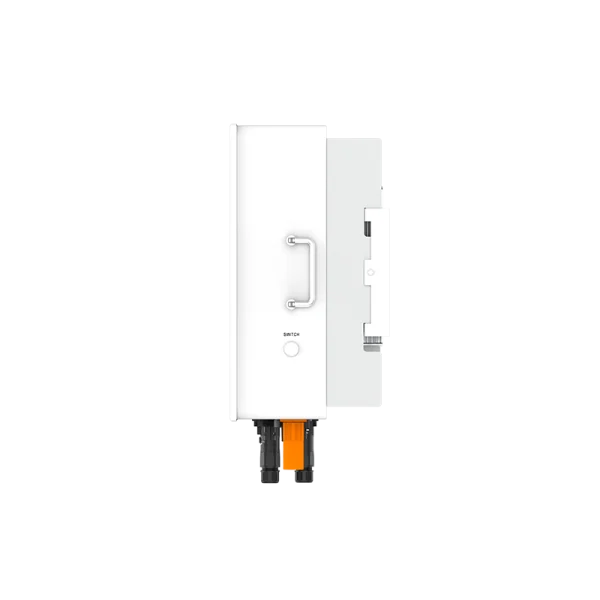

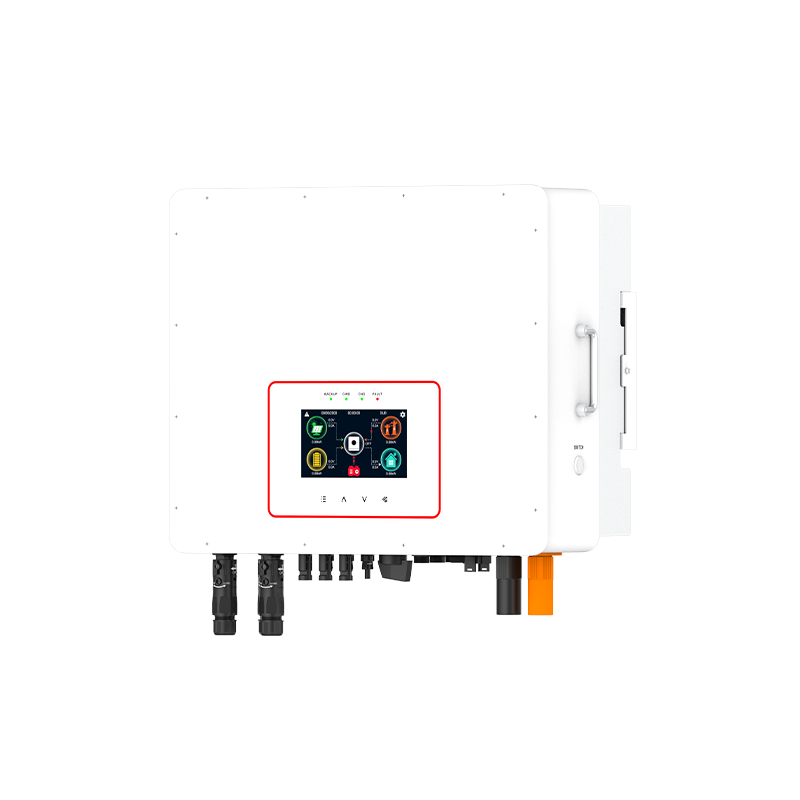

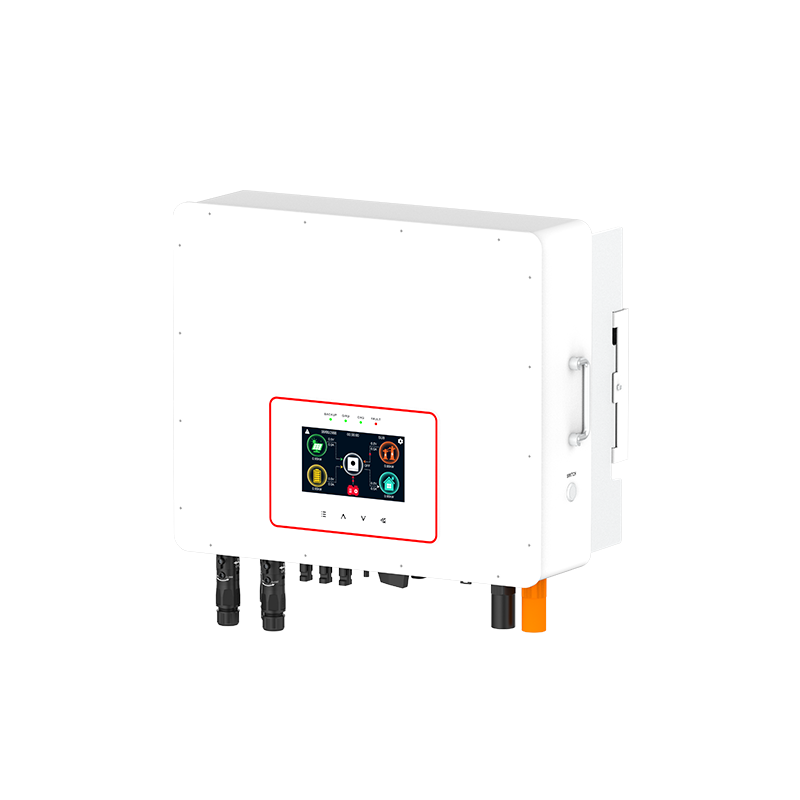

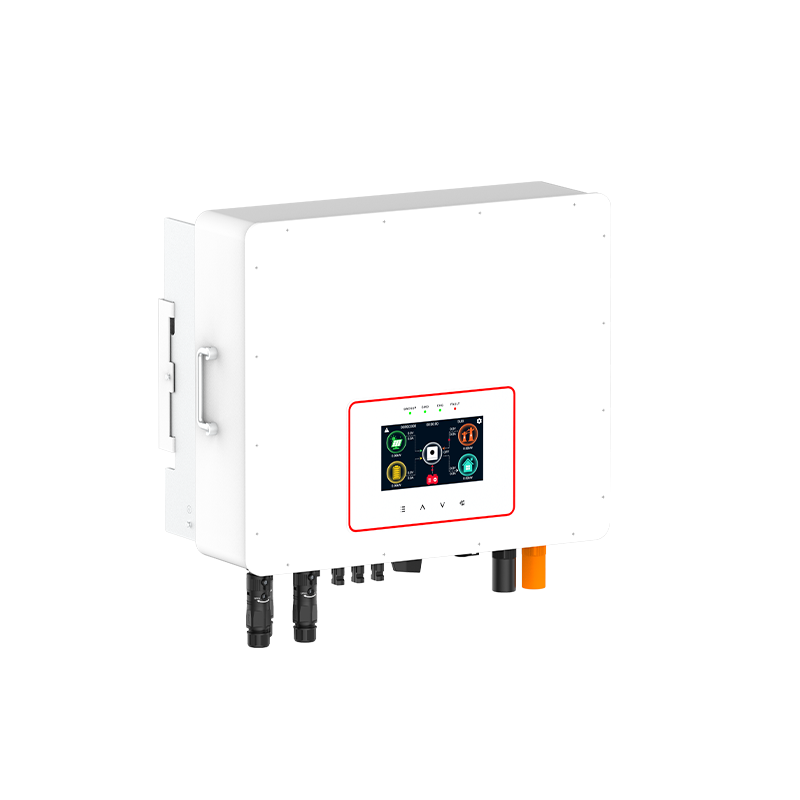

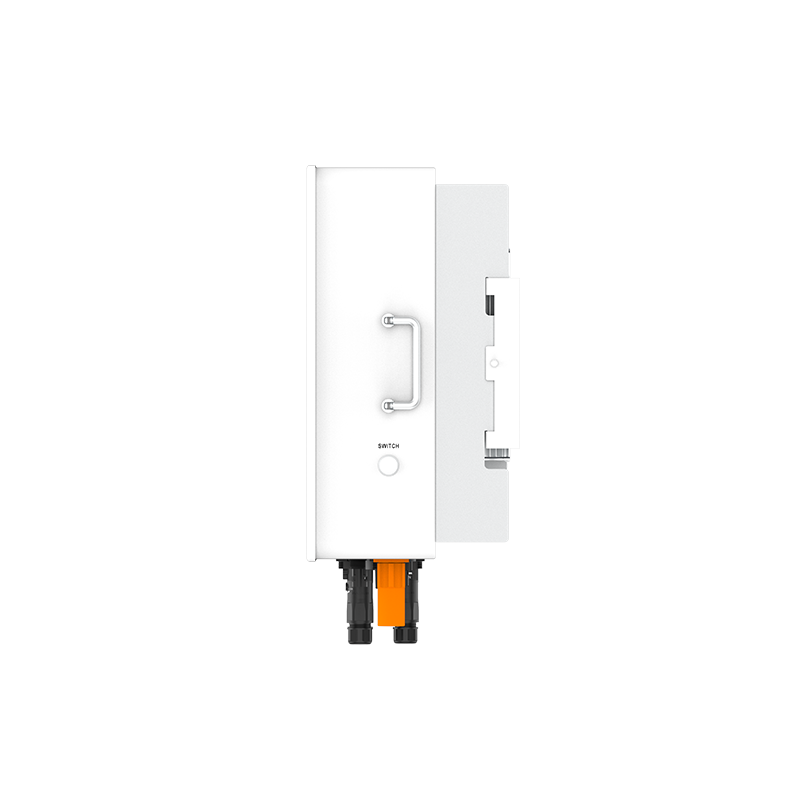

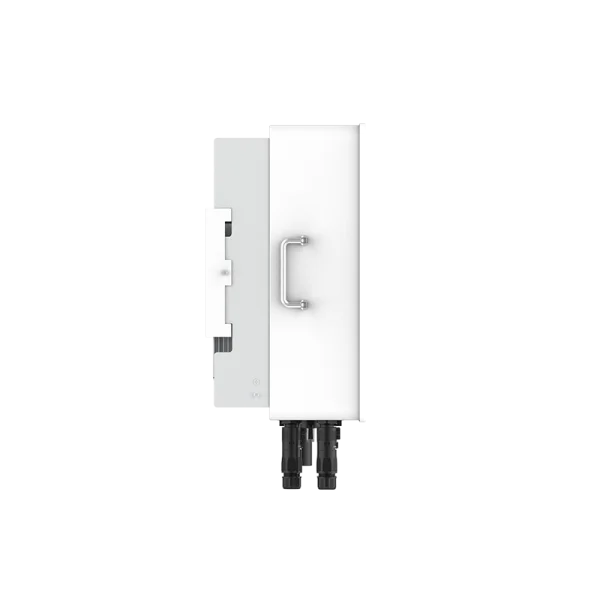

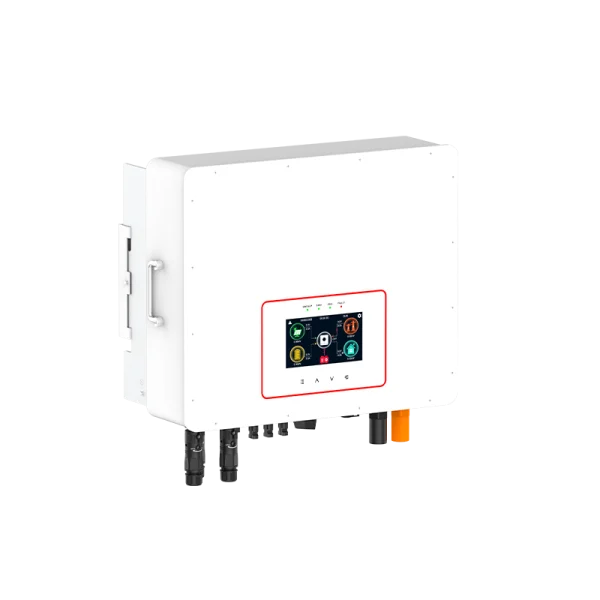

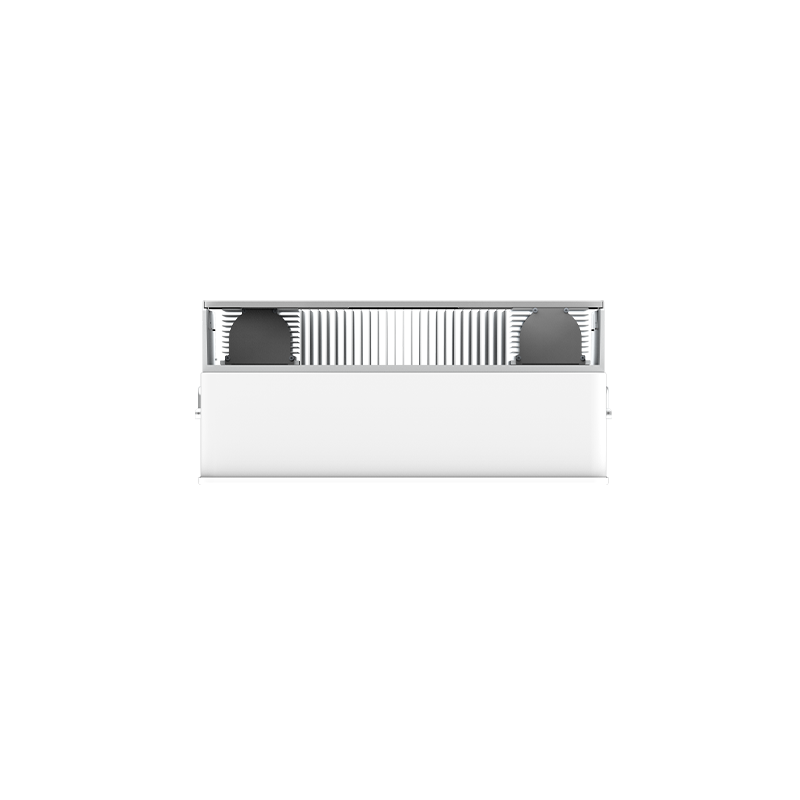

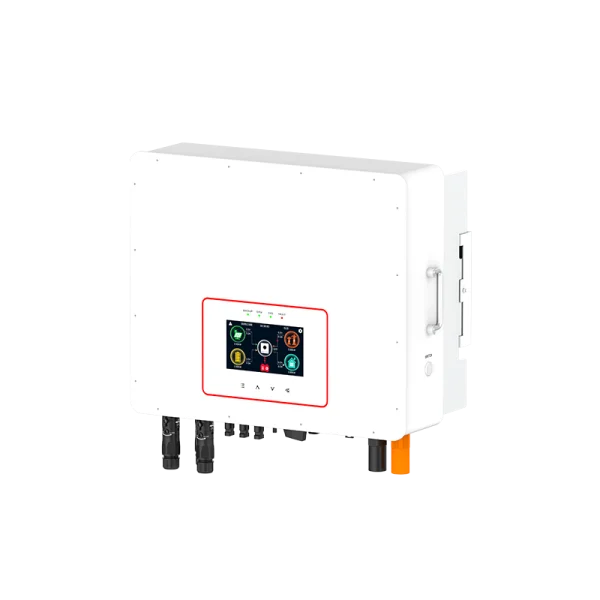

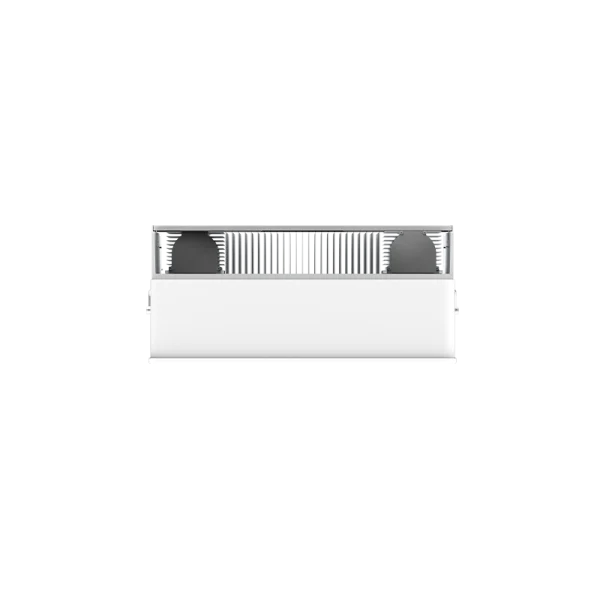

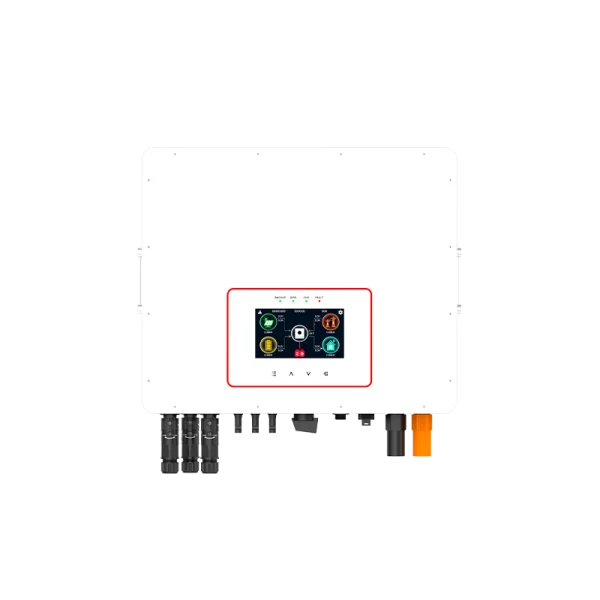

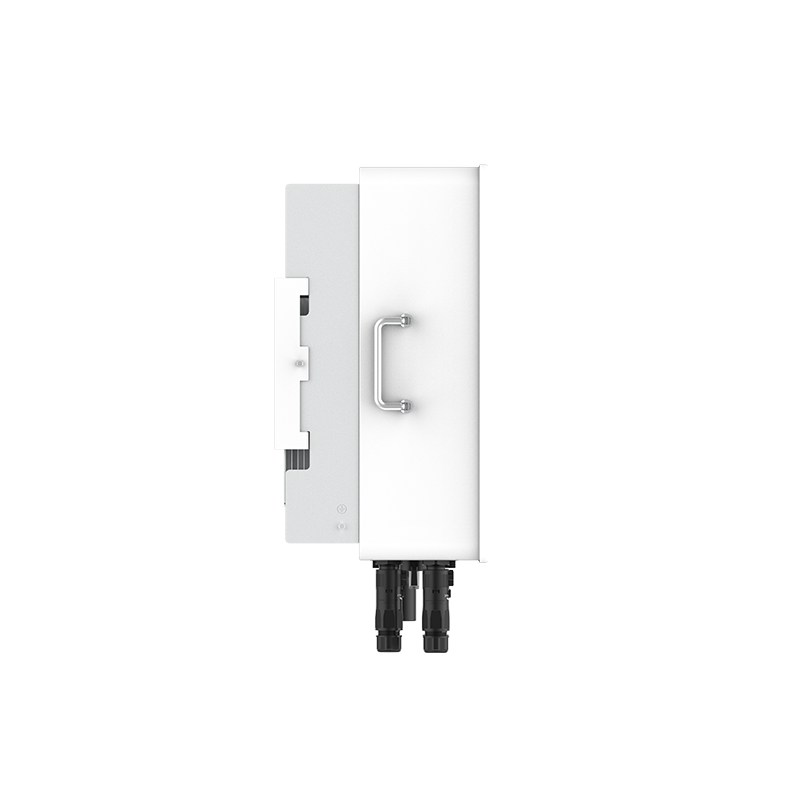

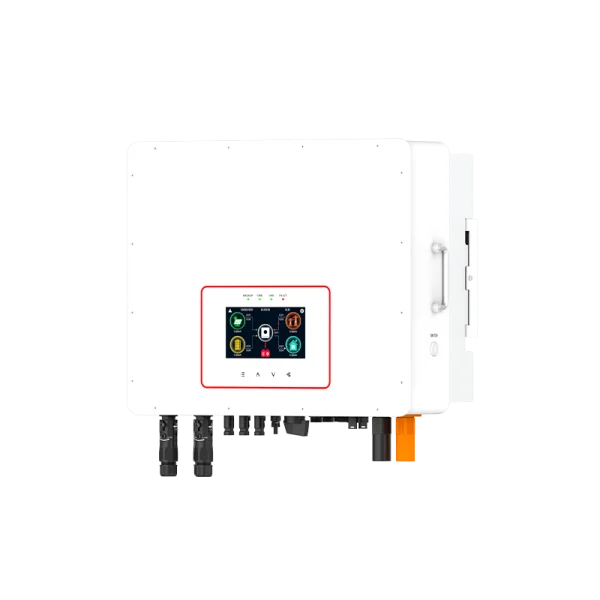

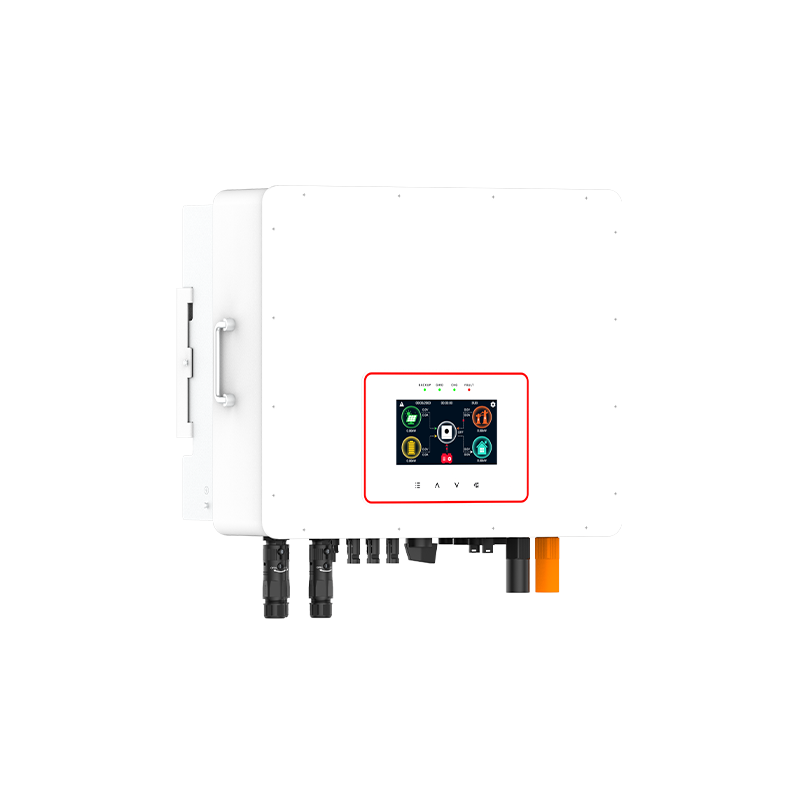

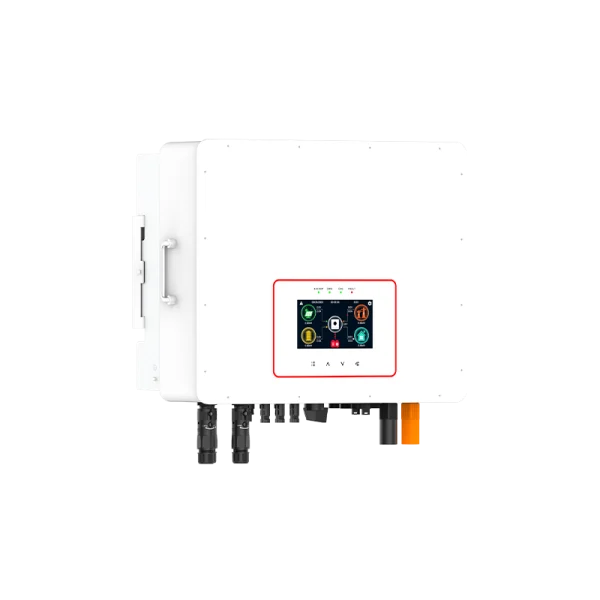

MAGIC-10K/12K/14K
