| MODEL | 25.6V100AH | 25.6V205AH | 25.6V300AH | 51.2V100AH | 51.2V205AH | 51.2V300AH |
| Energy Storage | 2560Wh | 5248Wh | 7680Wh | 5120Wh | 10496Wh | 15360Wh |
| Rated Voltage | 25.6V | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V |
| Voltage Range | 21.6V-29.2V | 21.6V-29.2V | 21.6V-29.2V | 43.2V-58.4V | 43.2V-54.8V | 43.2V-58.4V |
| Max Charge Current | 100A | 200A | 200A | 100A | 200A | 200A |
| Max Discharge Current | 100A | 200A | 200A | 100A | 200A | 200A |
| Discharging Cut-off Voltage | 21.6V | 21.6V | 21.6V | 43.2V | 43.2V | 43.2V |
| Floating Voltage | 28.8V | 28.8V | 28.8V | 57.6V | 57.6V | 57.6V |
| Cycle Life | >6000 cycles @ 80% DOD | |||||
| Certification | UN38.3/MSDS | |||||

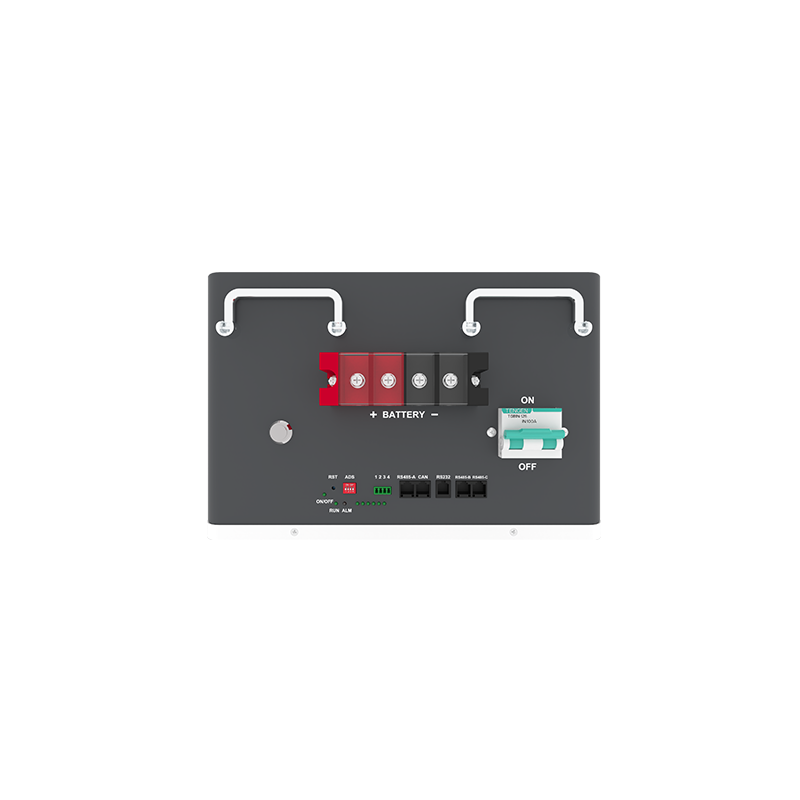

| Communication Port | RS485/CAN | |||||
| Work Temperature | -20°C~55°C | |||||
