| MODEL | 25.6V 100AH | 25.6V 205AH | 25.6V 300AH | 25.6V 314AH | 51.2V 100AH | 51.2V 205AH | 51.2V 300AH | 51.2V 314AH |
| Energy Storage | 2560Wh | 5248Wh | 7680Wh | 8038Wh | 5120Wh | 10496Wh | 15360Wh | 16077Wh |
| Rated Voltage | 25.6V | 25.6V | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V |
| Voltage Range | 21.6V-29.2V | 21.6V-29.2V | 21.6V-29.2V | 21.6V-29.2V | 43.2V-58.4V | 43.2V-54.8V | 43.2V-58.4V | 43.2V-58.4V |
| Max Charge Current | 100A | 200A | 200A | 200A | 100A | 200A | 200A | 200A |
| Max Discharge Current | 100A | 200A | 200A | 200A | 100A | 200A | 200A | 200A |
| Discharging Cut-off Voltage | 21.6V | 21.6V | 21.6V | 21.6V | 43.2V | 43.2V | 43.2V | 43.2V |
| Floating Voltage | 28.8V | 28.8V | 28.8V | 28.8V | 57.6V | 57.6V | 57.6V | 57.6V |
| Cycle Life | 6000 cycles @ 80% DOD | |||||||
| Certification | UN38.3 / MSDS | |||||||

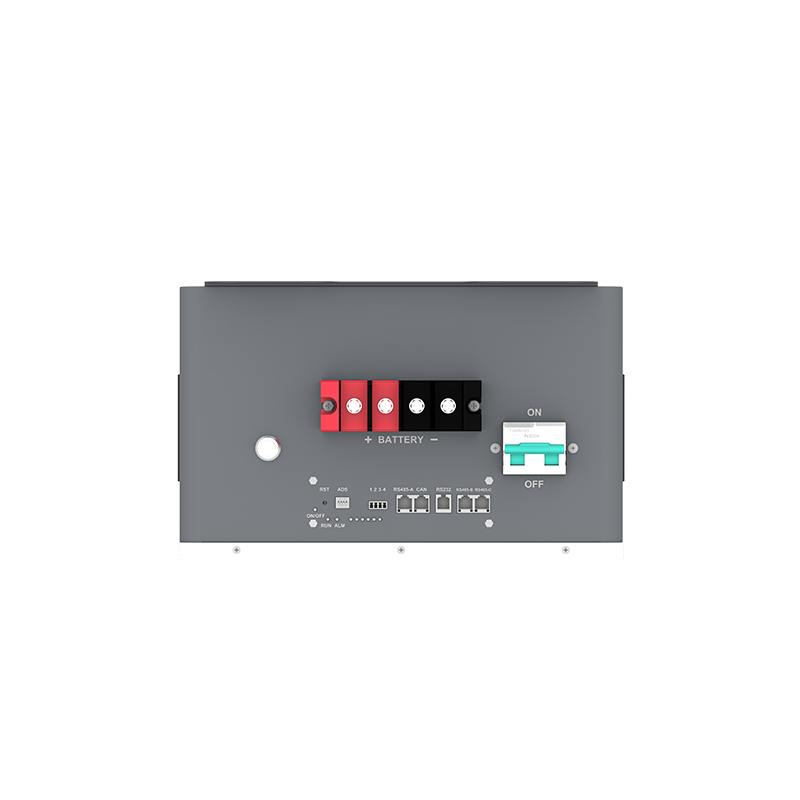

| Communication Port | RS485 / CAN | |||||||
| Work Temperature | -20°C ~ 55°C | |||||||
