| MODEL | META-4KW | META-6KW | META-10KW | META-15KW |
| RATED POWER | 4KVA/4KW | 6KVA/6KW | 10KVA/10KW | 15KVA/15KW |
| RUNNING MOTOR CAPACITY | 1.5P | 3P | 1.5P+3P | 3P+3P |
| PHASE | 1-phasein/1-phaseout | |||
| MAXIMUM PV INPUT POWER | 4500W | 4500W*2 | 4500W*3 | 4500W*4 |
| GRID-TIED OPERATION | ||||
| PVINPUT(DC) | ||||
| Maximum DC Voltage | 500Vdc | |||
| Start-up Voltage | 90Vdc | |||
| MPPT Voltage Range | 60-450Vdc | |||
| Number of MPPT Trackers/Maximum Input Current | 1/18A | 2/18A | 3/18A | 4/18A |
| GRID OUTPUT (AC) | ||||
| Nominal Output Voltage | 220/230/240VAC | |||
| Output Voltage Range | 195.5-253VAC | |||
| Nominal Output Current | 17.5A | 26.5A | 43.5A | 65.5A |
| Power Factor | >0.99 | |||
| EFFICIENCY | ||||
| Maximum Conversion Efficiency(DC/AC） | 97% | |||
| OFF-GRID OPERATION | ||||
| AC INPUT | ||||
| AC Start-up Voltage/Auto Restart Voltage | 170-280VAC/180VAC(UPS) | |||
| Acceptable Input Voltage Range | 90-280VACor170-280VAC(UPS) | |||
| Frequency Range | 50Hz/60Hz(Autosensing) | |||
| Maximum AC Input Current | 17.5A | 26.5A | 43.5A | 65.5A |
| GENERAL | ||||
| PHYSICAL | ||||
| Dimension,DxWxH(mm) | 360.7x278x106 | 360.7×310.6×107.3 | 360.7x325x109 | |
| Net Weight(kg) | 4.5 | 4.92 | 5.69 | 6.5 |
| INTERFACE | ||||
| Communication Port | RS232/Wi-Fi | |||
| ENVIRONMENT | ||||
| Humidity | 5%to95%Relative Humidity(Non-condensing) | |||
| IPdegree | IP21 | |||
| Operating Temperature | -10℃～50℃ | |||
| Storage Temperature | -15℃～60℃ | |||

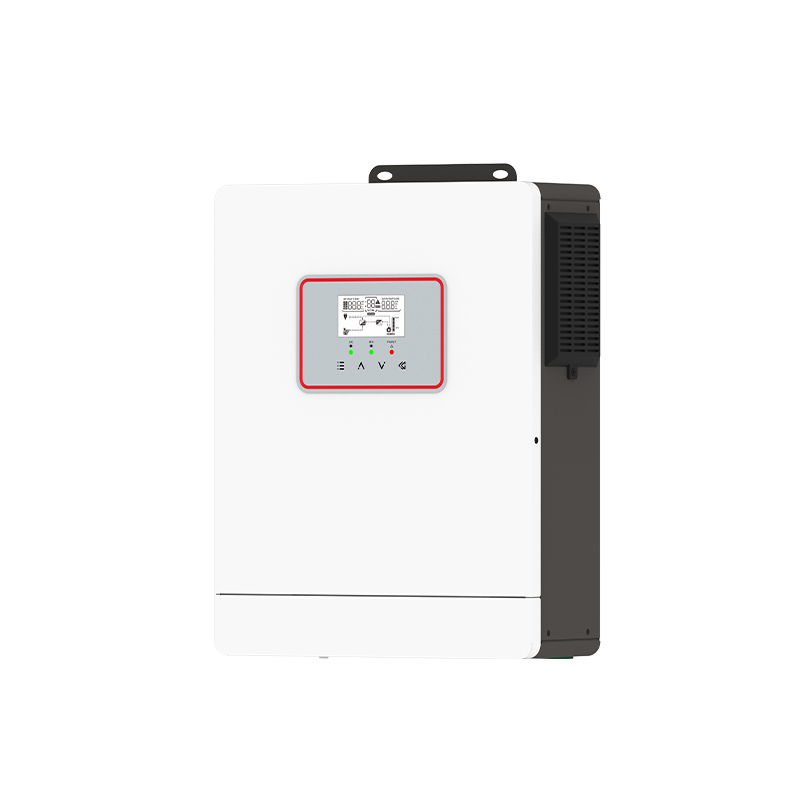

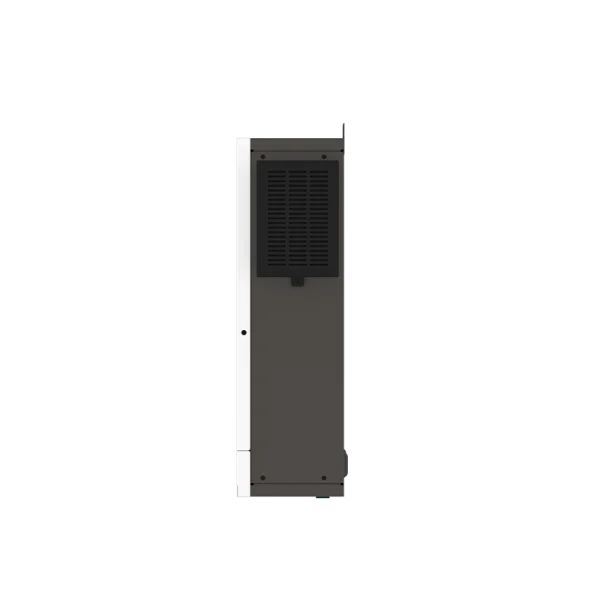

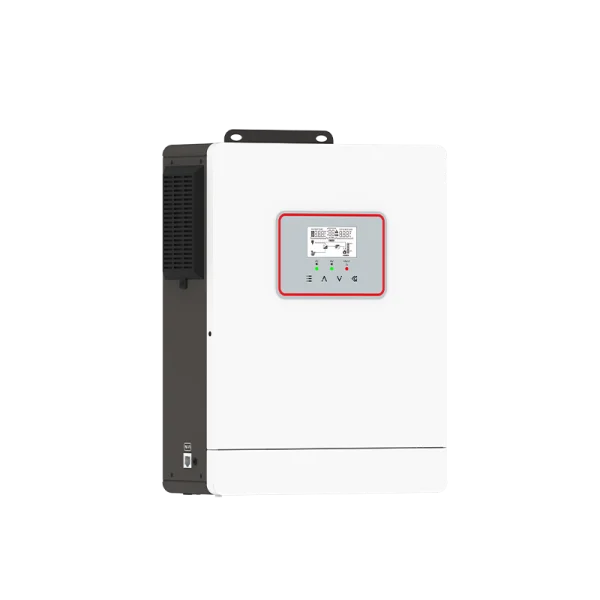

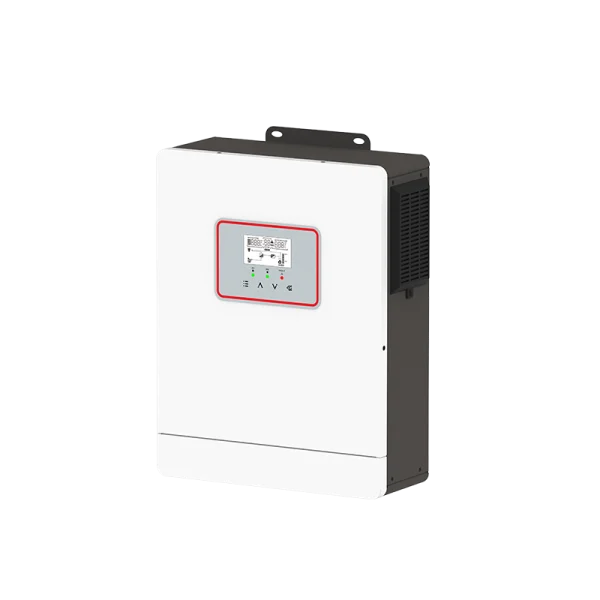

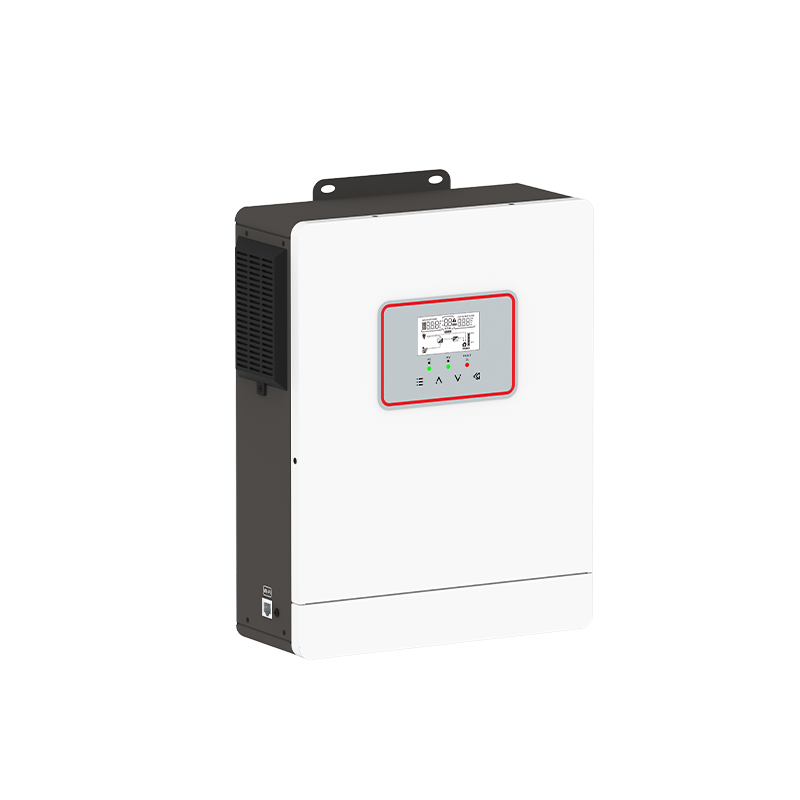

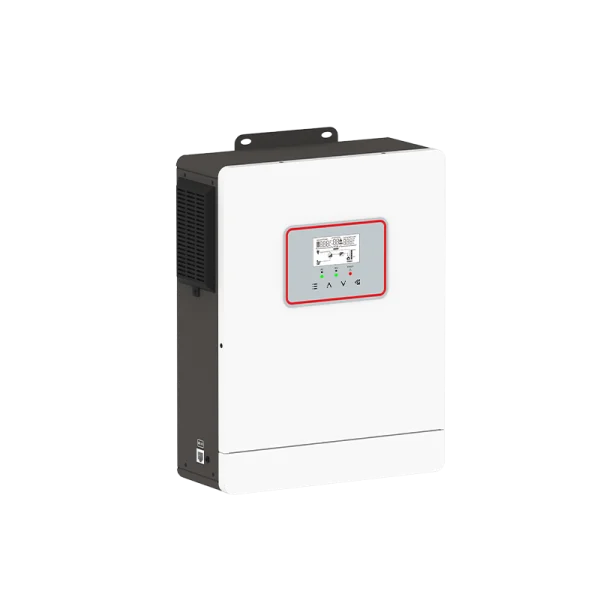

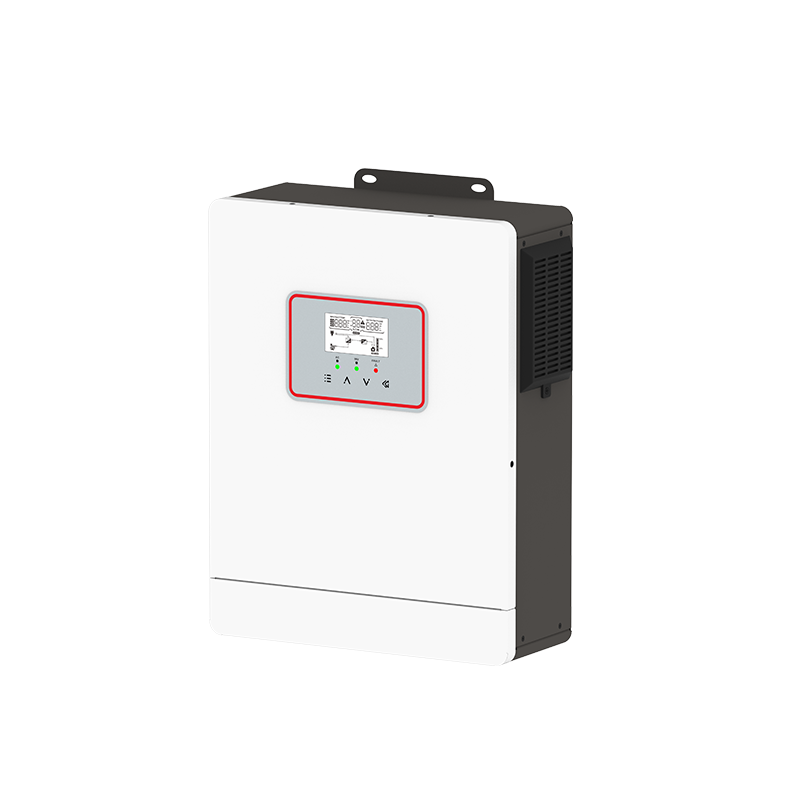

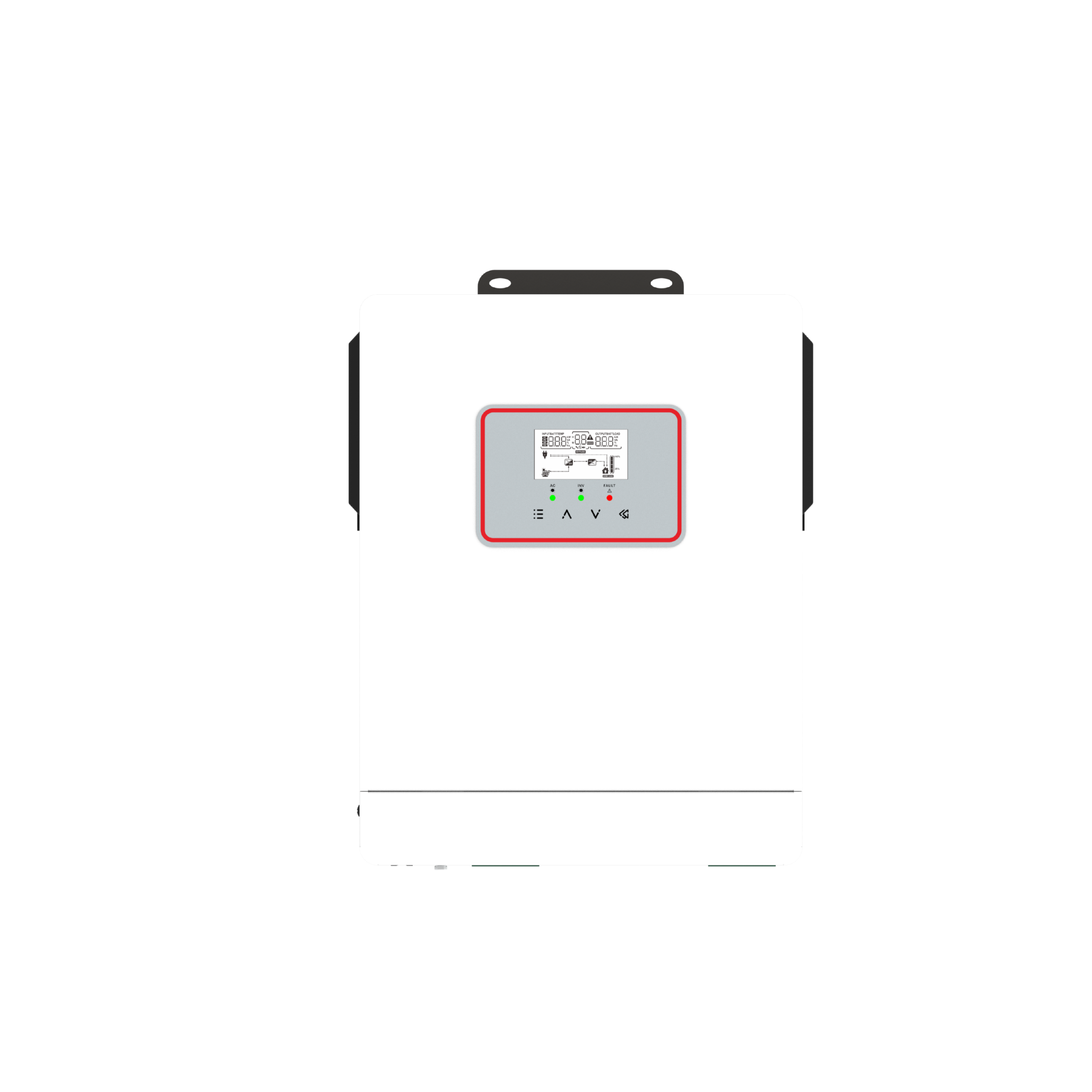

META-4K-6K
